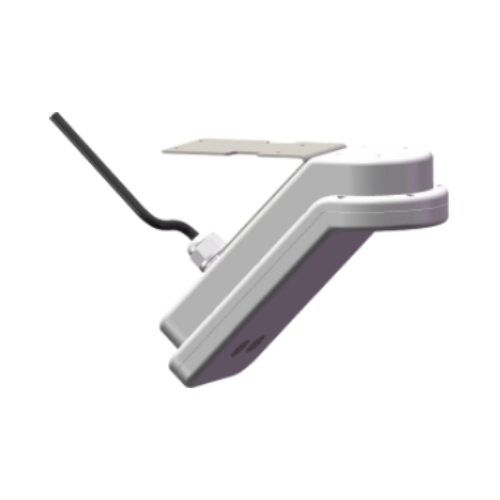

Radar Doppler Flowmeter

Get Latest Price

Principle :	Level: 120GHz FMCW; Velocity: 24GHz CW continuous wave Doppler;
Accuracy:	Level: ±1mm; Velocity: 0.01m/s;
Range :	Level: 0.05~10m; Velocity: 0.1~20m/s;
Beam angle :	Level: 4°; Velocity: 20°*20°;
Output :	RS485, M-Bus protocol
Protection:	IP68

Contact Now

Product Description

Description

Features

Parameters

Description:

The radar flowmeter has built-in liquid level and flow rate measurement modules. It is a non-contact flowmeter designed with microwave lens + microstrip array, 120GHz radar liquid level measurement + 24GHz radar Doppler surface flow rate measurement. It has the characteristics of high precision, low power consumption, strong anti-interference ability, etc. It can work stably all day long, is not affected by temperature gradients, cobweb condensation, pollutants and sediments in the water, and accurately measures water flow.

Features:

Partial pipe flow/open channel
Non-contact measurement
Liquid level: 120GHz FMCW
Liquid level and flow velocity radar measurement
Surface flow velocity: 24GHz CW Doppler method
High signal-to-noise ratio, strong anti-interference
Ultra-low power consumption design
High protection level, IP68
Intelligent sensing of external fluctuations, compensation

Parameters:

Product	Radar Doppler Flowmeter
Measuring principle	Level: 120GHz FMCW tuned continuous wave; Velocity: 24GHz CW continuous wave Doppler;
Measurement method	Non-contact measurement
Level range	0.05~10m
Level accuracy	±1mm
Level resolution	0.05mm
Ranging beam angle	4°
Velocity range	0.1~20m/s
Velocity accuracy	0.01m/s
Speed beam angle	20°*20°
Response time	100ms (adjustable)
Output	RS485, M-Bus protocol
Power consumption	12VDC/60mA
Antenna	Lens antenna + Microstrip array
Operating Temp.	-40~70℃
Protection	IP68
Shell material	Polymer corrosion resistant plastic
Size	142.7×80×63.5（mm）
Installation	Bracket installation (top)
