Large Diameter UT-Flowmeter

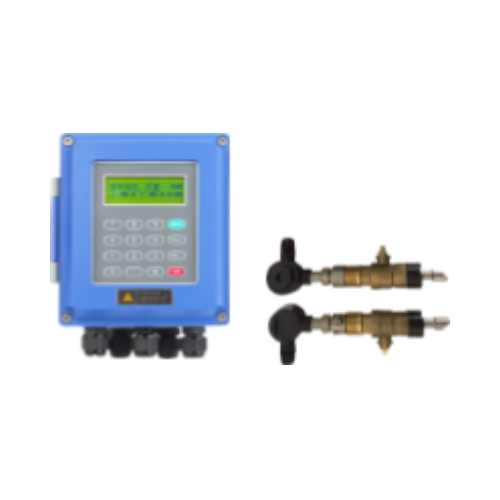

The insertion type ultrasonic transit time flowmeter is composed of a converter (host) and an insertion type sensor (consisting of a positioning base, a ball valve, and a sensor core). It is a contact measuring instrument. The instrument measurement is not affected by changes in temperature, pressure, density, accuracy, and conductivity. The sensor has a simple structure, no throttling body, and no clogging. It can display instantaneous flow, instantaneous flow velocity, positive, negative, and net cumulative volume, today's flow, heat, etc. With the installation of the pipe clamp, it can be installed without welding.

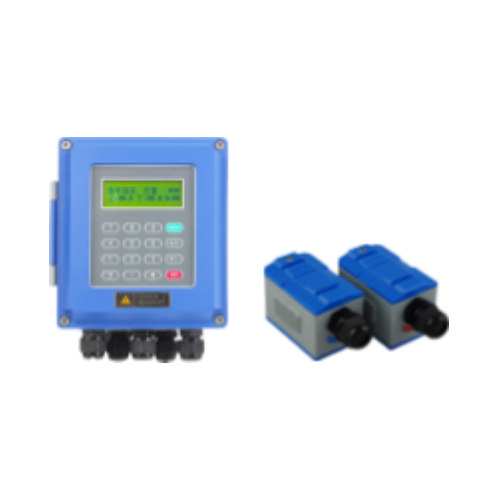

The clamp-on ultrasonic transit time flowmeter is composed of a converter (host) and a clamp-on sensor. It is a non-contact instrument. It has high measurement accuracy and is almost not affected by various parameters of the measured medium. In particular, it can solve the flow measurement problems of highly corrosive, non-conductive, radioactive and flammable and explosive media that other instruments cannot. It can be widely used in petroleum, chemical, metallurgy, electricity, water supply and drainage and other fields.

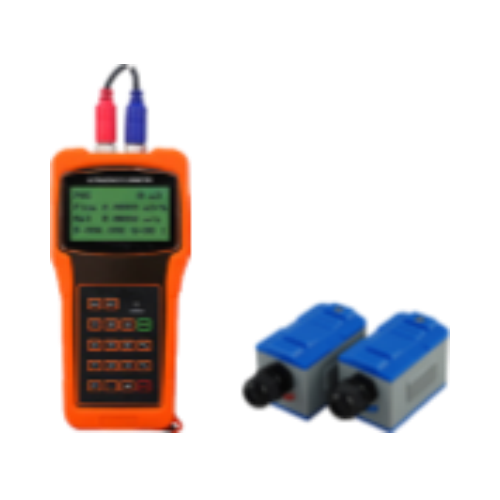

The handheld ultrasonic flowmeter is based on the principle of ultrasonic time difference method and consists of a handheld terminal and an external clamp ultrasonic sensor. It is a special instrument for flow inspection, with high measurement accuracy, measurement stability, good repeatability, battery power, simple operation, easy to carry, bilingual in Chinese and English, etc. It is used for online calibration and inspection measurement of liquid flow in industrial sites, and is compatible with a variety of external clamp ultrasonic time difference sensors. It can also be used for heat measurement.

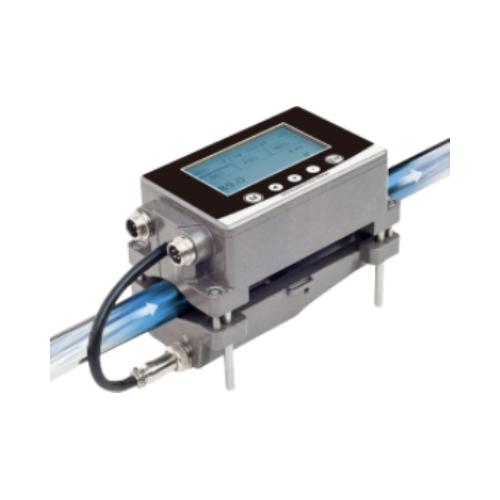

The clip-on ultrasonic time difference flowmeter consists of a converter (host) and a clamp-on sensor. It is a universal economical, external clamp-on, time difference ultrasonic flowmeter. It has a very simple installation method, no need to break the pipe, no need to stop the water supply, just one clamp, and the installation can be completed in a few minutes, allowing customers to easily achieve flexible pipeline flow measurement. It is suitable for a variety of metal pipes and resin pipes, does not require daily maintenance, and provides reliable, non-drifting data support for a long time. It is especially suitable for small flow measurement in small-diameter pipelines.

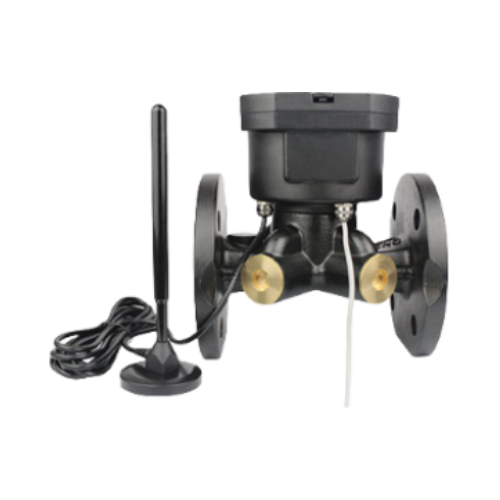

The intelligent remote ultrasonic water meter/flow meter is based on ultrasonic propagation phase and time difference measurement technology and adopts two-channel ultrasonic measurement method. It has significant features such as high precision, low power consumption, wide measurement range, stability and reliability, and IP68. Solve the problems of traditional water meters running idling, not measuring small flows, and excessive pressure loss. It has a variety of optional communication methods such as RS-485/M-BUS/NB-IoT/LoRa/LoRaWAN, and is suitable for remote transmission of water supply pipelines and household meter flow measurement.

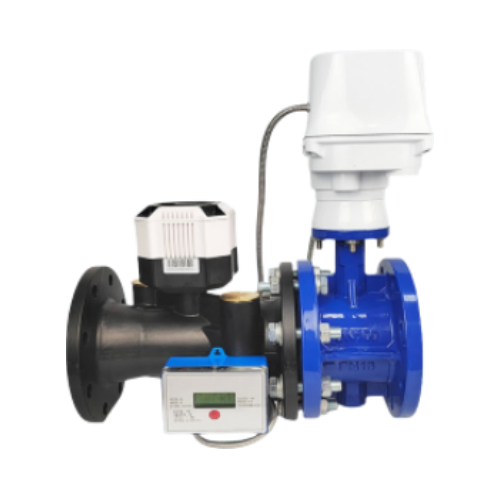

Intelligent remote transmission valve-controlled ultrasonic water meter/flowmeter integrates ultrasonic water meter, electric valve, and measurement and control terminal to realize remote monitoring of water intake and water metering and remote/automatic control of valves, and supports tiered water price and prepayment management. The valve-controlled water meter can accurately measure the instantaneous flow and cumulative flow in the pipeline, automatically control the valve switch according to the user's remaining water volume, and can also remotely control the valve switch through the central supervision software. It can be applied to water resource intake metering monitoring, remote meter reading and valve control for large tap water users.
