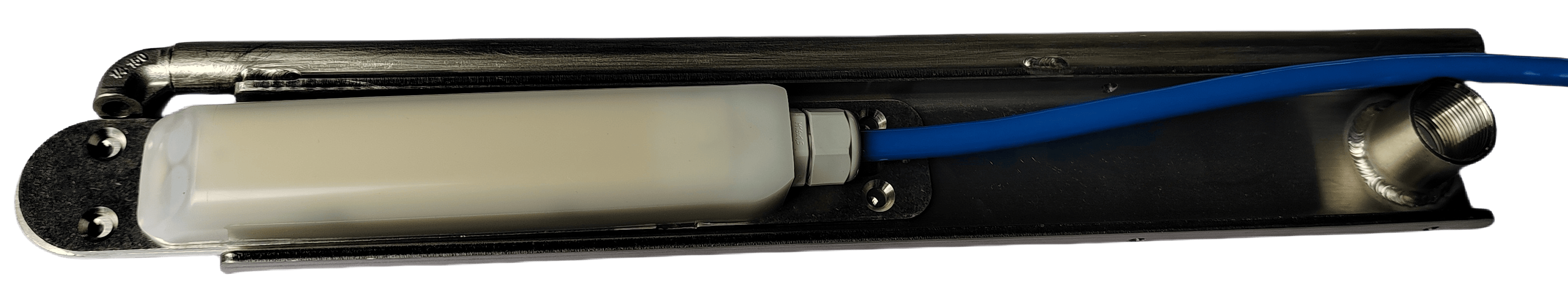

Ultrasonic Doppler Flowmeter

Get Latest Price

interface :	RS485
Self-cleaning :	integrated high-pressure gas flushing function(option)
Protection:	IP68
Principle:	Velocity :Ultrasound Continuous Doppler ; Level :Static pressure
Accuracy :	Velocity :1%Rd ; Level :0.5%Rd； Temp:0.5K;
Range :	Velocity :±6m/s ; Level :5~5000mm；

Contact Now

Product Description

Description

Features

Parameters

Description:

Ultrasonic Doppler flowmeter uses ultrasonic Doppler principle for measurement. It uses a combined wedge sensor to measure flow rate based on the continuous Doppler principle. The sensor has two built-in piezoelectric crystals, which are used for ultrasonic signal transmitter and receiver respectively. At the same time, the sensor integrates static pressure liquid level measurement and temperature measurement, and automatically compensates for the influence of temperature on sound velocity. It is widely used in flow measurement in urban drainage systems, rivers, ditches and other scenarios.

Features:

Liquid level and flow rate integrated
Integrated temperature measurement
Automatic temperature compensation
Low power design,
sleep + wake-up design
Protection level IP68
Support remote, Bluetooth, local setting

* Self-cleaning Type, integrated self-cleaning function (high-pressure gas flushing)

Parameters:

Product	Ultrasonic Doppler Flowmeter
Power supply	8~24V DC
interface	RS485
Max. consumption	2.1W
Typical consumption	1.2W (measurement period: 1 second)
Standby consumption	0.4W
Protection	IP68
Sensor housing material	PVDF
Self-cleaning function	Self-cleaning type, integrated high-pressure gas flushing function
Velocity measurement
principle	Ultrasound Continuous Doppler
Frequency	1MHz
Range	±6m/s
Min. Velocity	10cm/s
Accuracy	1%Rd
Level measurement
Principle	Pressure Level Meter
Range	5~5000mm
Accuracy	0.5%Rd
Temp. measurement
Accuracy	0.5K
