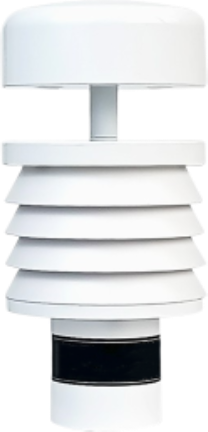

Small Ultrasonic Anemometer

Get Latest Price

Principle :	Ultrasonic transit time
Sensor :	Wind、Temp、Humidity、Air-pressure 、Rainfall
Output:	RS232/RS485/4-20mA (option)
Protocol :	ModBus、NMEA-0183
Protection :	IP65
Power supply:	5~30V DC

Contact Now

Product Description

Description

Features

Parameters

Description:

The small ultrasonic wind speed and direction sensor is based on the ultrasonic transit time principle. It is a wind measuring instrument made according to the principle that the propagation speed of ultrasonic waves in the air changes with wind direction and wind speed. It can measure the instantaneous values of wind speed and wind direction at the same time. Compared with mechanical devices, acoustic measurement has the characteristics of wide wind range, high sensitivity, and fast response speed. It has no moving parts, does not require maintenance and on-site calibration, and can output wind speed and wind direction at the same time.

Features:

Ultrasonic transit time principle
Small integrated design
No maintenance required
No on-site calibration required
Fast response, high sensitivity
Can measure wind speed in any direction
Simultaneous output of wind speed and wind direction
Extension: temperature, humidity, air pressure, rainfall

Parameters:

Product	Small Ultrasonic Anemometer
Driving principle	Ultrasonic transit time
Sensor	Range	Accuracy	Resolution
Wind speed (standard)	0 ~ 40m/s	3％FS	0.1m/s
Wind direction (standard)	0 ~ 359°	3°	1°
Temperature (option)	-40 ~ 80℃	0.5℃	0.1℃
Humidity (option)	0 ~ 100%RH	0.3％RH	0.1%RH
Air-pressure (option)	100 ~ 1100hPa	0.1%FS	0.1hPa
Rainfall (option)	0~200mm/h	5%FS	0.1mm
Output	RS232/RS485/4-20mA (option)
Baud rate	4800 - 19200 bps
Communication Protocol	ModBus、NMEA-0183
Protection	IP65
Operating temperature	-30~ 50℃
Storage temperature	-50~ 80℃
Operating humidity	0 ~ 100%RH
Power supply	5~30V DC
Power consumption	0.2W
Size	Φ 84×120mm (standard)
Weight	0.78kg
Material	ABS/Aluminum Alloy
