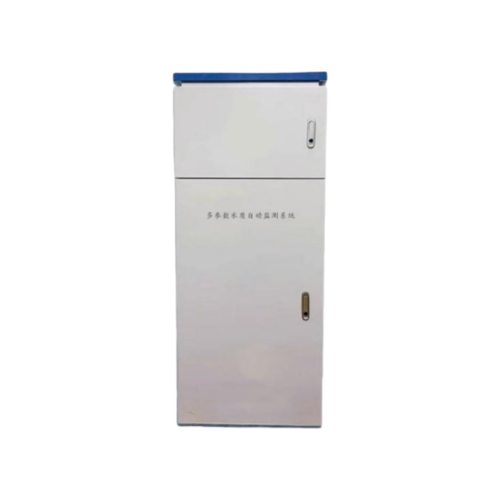

Small automatic water quality monitoring station

Get Latest Price

Power supply :	220V AC
Power consumption :	5000W
Maintenance cycle :	168h
Measure factor:	PH、EC、DO、Turbidity 、Temp、TP、TN、NH3-N、COD
Measurement method :	Sensor method + Chemical method
Size:	LWD: 120010002000 mm

Contact Now

Product Description

Description

Features

Parameters

Description:

Outdoor small water quality automatic monitoring station is suitable for high-density, low-cost and high-frequency requirements of water quality monitoring. It has the advantages of small footprint, complete quality control functions and reliable operation. The automatic monitoring station consists of water sampling unit, pretreatment and water distribution unit, analysis unit, data acquisition and transmission unit, control unit, auxiliary unit (waste liquid collection, lightning protection, air conditioning, etc.), etc., and can be equipped with quality control unit and remote monitoring platform.

Features:

Multiple quality control functions
Automatic zero-point verification
Scientific pre-processing system
Integrated positioning and alarm
Video monitoring, visual management
Access control system combined with anti-theft
Supports any combination of monitoring factors
Intelligent temperature control system, cabinet insulation design
Waterproof and dustproof level of IP55 and above

Parameters:

Product	Small automatic water quality monitoring station (Standard)
Measure factor	Measurement method	Range	Repeatability	Permissible error
PH	Sensor method	0～14	±0.1	±0.1
Conductivity	Sensor method	0～200ms/cm	±1%	±1%
DO	Sensor method	0～20mg/L	±0.3mg/L	±0.3mg/L
Turbidity	Sensor method	0～400NTU	±5%	±5%
Temp.	Sensor method	0～55℃	±1%	±0.5℃
TP	Chemical method	0～50mg/L	≤10%	≤10%
TN	Chemical method	0～100mg/L	≤10%	≤10%
NH3-N	Chemical method	0～300mg/L	≤2%	≤10%
COD	Chemical method	10～5000mg/L	≤5%	≤3%
Size	LWD: 120010002000 mm
Power supply	220V AC
Power consumption	5000W
Maintenance cycle	168h
Remark	Other configurations, customizable
